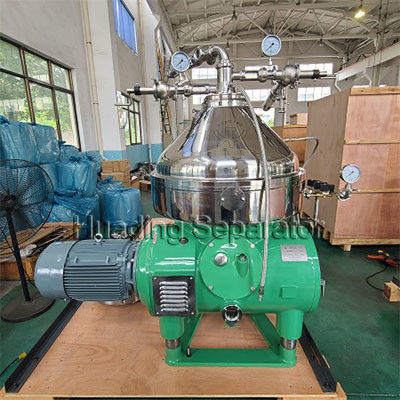

Centrifuge | Advanced Extraction Disc Oil Separator With Premium Motor & Bearing

Working principle

Disc separator is a device that can quickly and continuously separate solid-liquid and liquid-liquid. The aliases are also called disc centrifuges and disc stack separators, both of which belong to a type of vertical separator. Its working principle is driven by a motor to rotate at a high speed. There is a group of dish-shaped parts nestled together in the bowl. There is a small gap between each two discs. The suspension (or emulsion) is fed into the bowl from a feed tube located in the center of the bowl. When the suspension (or emulsion) flows through the gap between the discs, the solid particles (or droplets) settle on the discs under the action of the centrifuge to form a sediment (or liquid layer). The sludge slides along the surface of the disc to separate from the disc and accumulate in the large diameter part of the bowl. The separated liquid is discharged from the liquid outlet to the bowl. The function of the disc is to shorten the settlement distance of solid particles (or droplets) and expand the settlement area of ​​the bowl. The installation of the disc in the bowl greatly increases the production capacity of the separator. The solids accumulated in the bowl can be removed manually after the separator is shut down by disassembling the bowl, or discharged from the drum through the slag discharge mechanism without stopping the machine.

Feature
1. All parts directly touch to material are made of stainless steel
2. Continuous and automatic operation can minimize labor costs, easy in installation and maintenance
3. High bowl rotation speed with high G-force via VFD adjustable
4. Automatic discharging with PLC control system and LED touch screen operation
5. Full-automatic vibration detector and alarm
6. Running in high speed, operating stability and low noise
7. Stability outlet pressure, large regulating sphere and operating easily

Company introduction

Huading Separator, Yixing Huading Machinery Co.,Ltd, is one of the market leaders in the field of centrifugal separation technology in China.

The company has over 60 years experience in the design and manufacturing of centrifugal separation equipment. Complete systems, customized for specific applications, can be provided in a compact, fully tested, skid-mounted assembly. The company’s equipment, systems and services are dedicated to assisting customers in optimizing the performance of their processes. The solutions help customers to clarify, concentrate, and separate products in production.

Separators and decanters from Huading Separator are used in food, beverage, pharmaceutical, chemical, marine, oilfield, energy, mining, mechanical engineering and wastewater treatment etc.

Huading Separator’s organization works closely with customers to help them stay ahead in their business line.

Main parameter

Complete separator with motor
